The DataCluster class identifies main cluster boundaries (LCB and UCB) from probability density functions (PDF) of fitted Gnostic Distribution Functions (GDFs), including ELDF, EGDF, QLDF, and QGDF.

Overview

DataCluster performs advanced cluster analysis on fitted GDF objects. It uses a unified derivative-based method on normalized PDF data to precisely locate the boundaries of the main data cluster.

Key Features:

  • Unified Algorithm: Apply consistent boundary detection across all GDF types (ELDF, EGDF, QLDF, QGDF).
  • PDF Normalization: Analyzes min-max normalized PDF values [0,1] for robust thresholding.
  • Derivative Analysis: Locates boundaries where the combined signal (PDF + 1st Derivative) drops below a threshold.
  • Robust Fallback: Automatically falls back to data bounds if boundary detection fails.
  • Diagnostic Plotting: Visualizes the PDF, derivative signals, and detected boundaries.

Parameters

Parameter Type Default Description
gdf ELDF/EGDF/QLDF/QGDF - Fitted GDF object (must have pdf_points via catch=True).
verbose bool False Enable detailed progress reporting and diagnostic output.
catch bool True Enable error catching and graceful degradation.
derivative_threshold float 0.01 Threshold for boundary detection (lower = wider cluster, higher = narrower).

Attributes

  • LCB: float or None Cluster Lower Boundary (left edge of the main cluster).
  • UCB: float or None Cluster Upper Boundary (right edge of the main cluster).
  • z0: float or None Characteristic point of the distribution (from GDF).
  • S_opt: float or None Optimal scale parameter (from GDF).
  • pdf_normalized: ndarray or None Min-max normalized PDF values [0,1] used for analysis.
  • params: dict Complete analysis results including boundaries, methods used, and diagnostics.

Methods

fit(plot=False)

Perform cluster boundary detection analysis.

  • plot: bool (default=False). If True, generates a plot of the results.

Returns: Tuple[float, float] — The detected (LCB, UCB) values. Returns (None, None) if analysis fails.

results()

Return comprehensive analysis results dictionary.

Returns: Dict — Dictionary containing:

  • Cluster Bound results: LCB, UCB, cluster_width, clustering_successful
  • GDF Info: gdf_type, Z0, S_opt
  • Diagnostics: method_used, normalization_method, errors, warnings

plot(figsize=(12, 8))

Visualize PDF, boundaries, and derivative analysis.

  • figsize: tuple (default=(12, 8)).

Returns: None. (Displays a two-panel plot: Top=Original PDF, Bottom=Derivative Analysis).

Example Usage

import numpy as np
from machinegnostics.magcal import QLDF, DataCluster

data = np.array([-13.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10])

# 1. Fit GDF (e.g., ELDF) - Ensure catch=True for PDF points
# create an ELDF object, outlier robust
eldf = ELDF()

# fit the data
eldf.fit(data=data)

# 2. Perform Cluster Analysis
cluster = DataCluster(gdf=eldf, verbose=True)
CLB, CUB = cluster.fit(plot=True)

if CLB is not None:
    print(f"Main Cluster: [{CLB:.3f}, {CUB:.3f}]")

# 3. Access Detailed Results
results = cluster.results()
print(f"Cluster Width: {results['cluster_width']}")

# 4. Custom Visualization
cluster.plot(figsize=(15, 10))

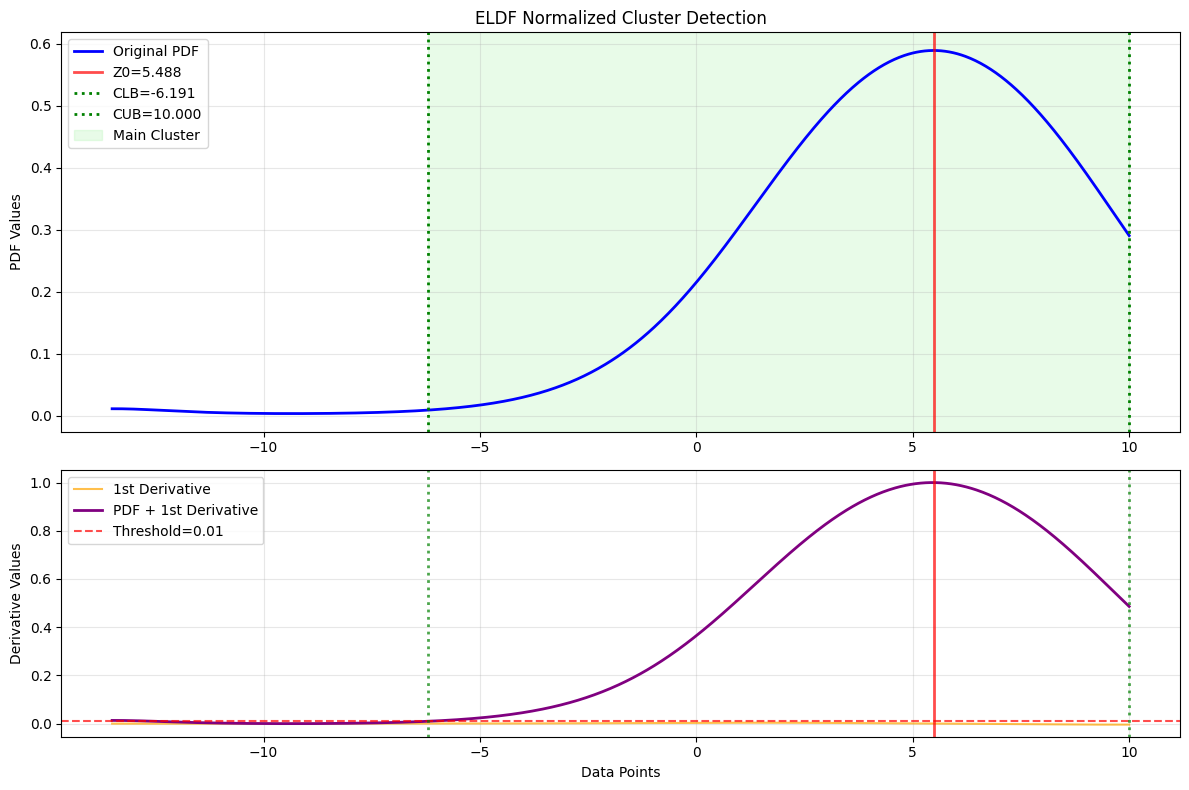

Data Cluster

Notes

  • Unified Method: Clustering now uses a single consistent method (normalized derivative threshold) for all GDF types.
  • Normalization: All PDFs are normalized to [0, 1] to ensure the derivative_threshold behaves consistently regardless of the original data scale.
  • Requirements: The input gdf must be fitted with catch=True so that pdf_points are available for analysis.

Author: Nirmal Parmar
Date: 2025-10-10
