GnosticDecisionTreeRegressor: Robust Decision Tree with Machine Gnostics

The GnosticDecisionTreeRegressor implements a single Decision Tree Regressor enhanced with iterative gnostic reweighting. It is designed to handle outliers and varying data quality by identifying and down-weighting samples with high gnostic residual or uncertainty, fitting a robust model directly to the data.

Overview

Machine Gnostics GnosticDecisionTreeRegressor combines the interpretability of decision trees with the robustness of Mathematical Gnostics. It iteratively refines sample weights based on regression residuals to improve prediction accuracy in the presence of noise and outliers.

  • Robust Single Tree: Fits a decision tree that is robust to outliers by down-weighting them.
  • Iterative Refinement: Updates sample weights based on residuals over multiple iterations.
  • Interpretable: Maintains the interpretability of a single decision tree.
  • Data Quality Handling: Automatically adjusts to data with outliers or non-Gaussian noise.
  • Event-Level Modeling: Handles uncertainty at the level of individual data events.
  • Easy Model Persistence: Save and load models with joblib.

Key Features

  • Robust regression using iterative gnostic reweighting
  • Iterative refinement of sample weights
  • Configurable tree depth and splitting criteria
  • Identifies and handles outliers automatically
  • Convergence-based early stopping
  • Training history tracking for analysis
  • Compatible with numpy arrays for input/output

Parameters

Parameter Type Default Description
max_depth int None Maximum depth of the tree.
min_samples_split int 2 Minimum samples to split a node.
gnostic_weights bool True Whether to use iterative gnostic weights.
max_iter int 10 Maximum gnostic iterations.
tolerance float 1e-4 Convergence tolerance.
data_form str 'a' Data form: 'a' (additive) or 'm' (multiplicative).
verbose bool False Verbosity.
random_state int None Random seed.
history bool True Whether to record training history.
scale str 'auto' Scaling method for input features.
early_stopping bool True Whether to stop training early if convergence is detected.

Attributes

  • gnostic_weights: bool
    • Whether iterative gnostic weights were used.
  • max_depth: int
    • Maximum depth of the tree.
  • max_iter: int
    • Maximum number of iterations used.
  • _history: list
    • List of dictionaries containing training history (if enabled).
  • tolerance, data_form, verbose, random_state, scale, early_stopping
    • Configuration parameters as set at initialization.

Methods

fit(X, y)

Fit the model to the data.

This method trains the decision tree regressor using the provided input features and target values. If gnostic_weights is True, it iteratively refines the model by reweighting samples based on gnostic residuals.

Parameters

  • X: np.ndarray of shape (n_samples, n_features)
    • Input features.
  • y: np.ndarray of shape (n_samples,)
    • Target values.

Returns

  • self: GnosticDecisionTreeRegressor
    • Returns the fitted model instance for chaining.

predict(model_input)

Predict outcomes for new data.

Parameters

  • model_input: np.ndarray of shape (n_samples, n_features)
    • Input data for prediction.

Returns

  • y_pred: np.ndarray of shape (n_samples,)
    • Predicted target values.

score(X, y)

Compute the robust (gnostic) R² score for the model.

Parameters

  • X: np.ndarray of shape (n_samples, n_features)
    • Input features for evaluation.
  • y: np.ndarray of shape (n_samples,)
    • True target values.

Returns

  • score: float
    • Robust R² score of the model.

save(path)

Saves the trained model to disk using joblib.

  • path: str Directory path to save the model.

load(path)

Loads a previously saved model from disk.

  • path: str Directory path where the model is saved.

Returns

Instance of GnosticDecisionTreeRegressor with loaded parameters.

Example Usage

import numpy as np
from machinegnostics.models import GnosticDecisionTreeRegressor

# Generate synthetic data with outliers
np.random.seed(42)
X = np.random.rand(100, 1) * 10
# True relation: y = 2x + 1
y = 2 * X.ravel() + 1 + np.random.normal(0, 0.5, 100)
# Add strong outliers
y[::10] += 20

# Initialize and fit the robust tree model
model = GnosticDecisionTreeRegressor(
    max_depth=5,
    gnostic_weights=True,
    max_iter=10,
    verbose=True
)
model.fit(X, y)

# Make predictions
preds = model.predict(X[:5])
print("Predictions:", preds)

# Score
r2 = model.score(X, y)
print(f"Robust R2: {r2:.4f}")

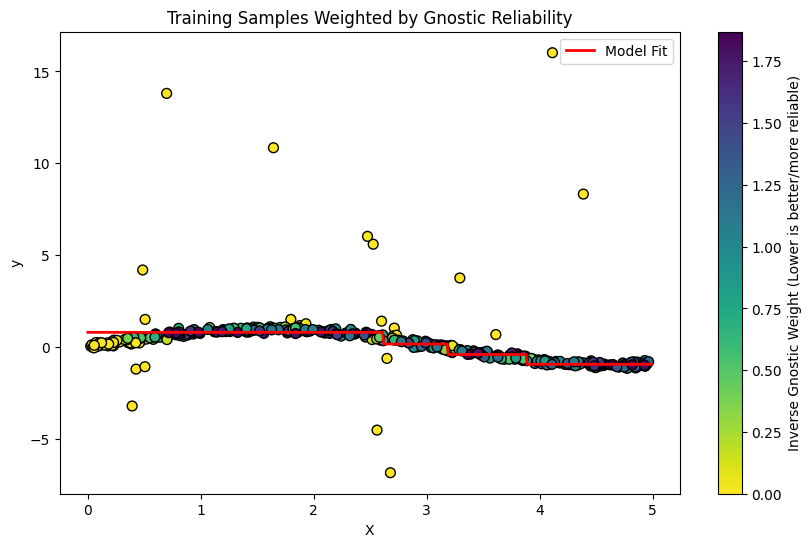

Gnostic Decision Tree Reg

Training History

If history=True, the model records detailed training history at each iteration, accessible via model._history. This is particularly useful when gnostic_weights=True to observe how sample weights evolve over iterations.

Notes

  • This model is resilient to outliers due to the iterative gnostic reweighting mechanism.
  • Provides interpretability similar to a standard decision tree but with enhanced robustness.

Author: Nirmal Parmar
